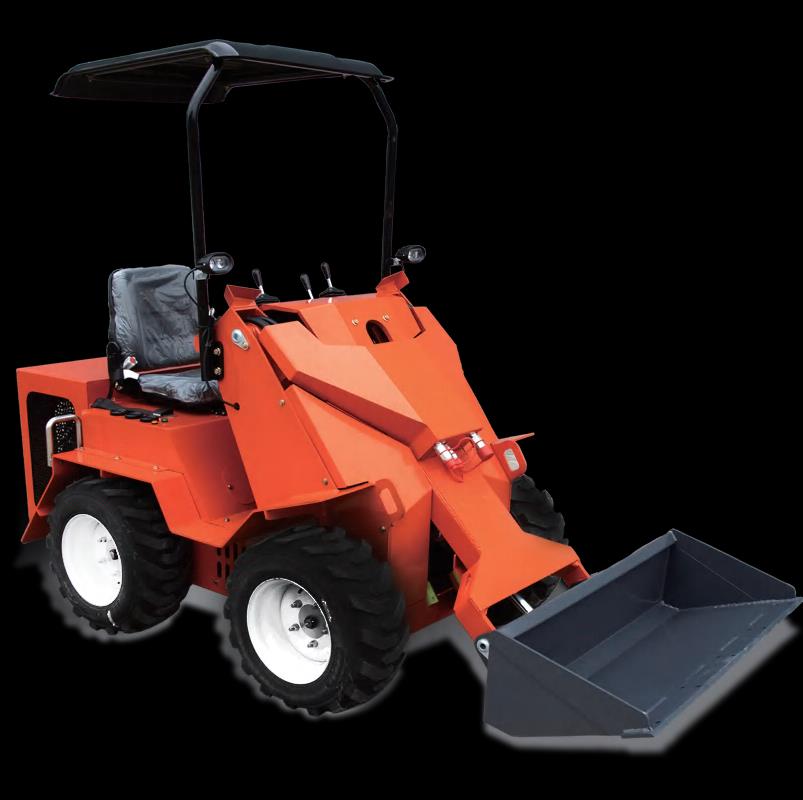

中文Wheeled skid steer loader-TN-490
Product Model & Document No. • Wheeled skid steer loader
Rated Load
200kg
Bucket Capacity
0.12m³
Horse power
25hp
Engine Model
292F/XR2100
1. Product Overview
Powerful performance, effortless operation, total peace of mind.
2. Key Features
- •Hydraulic system
- •Excellent engine
- •Superior engine

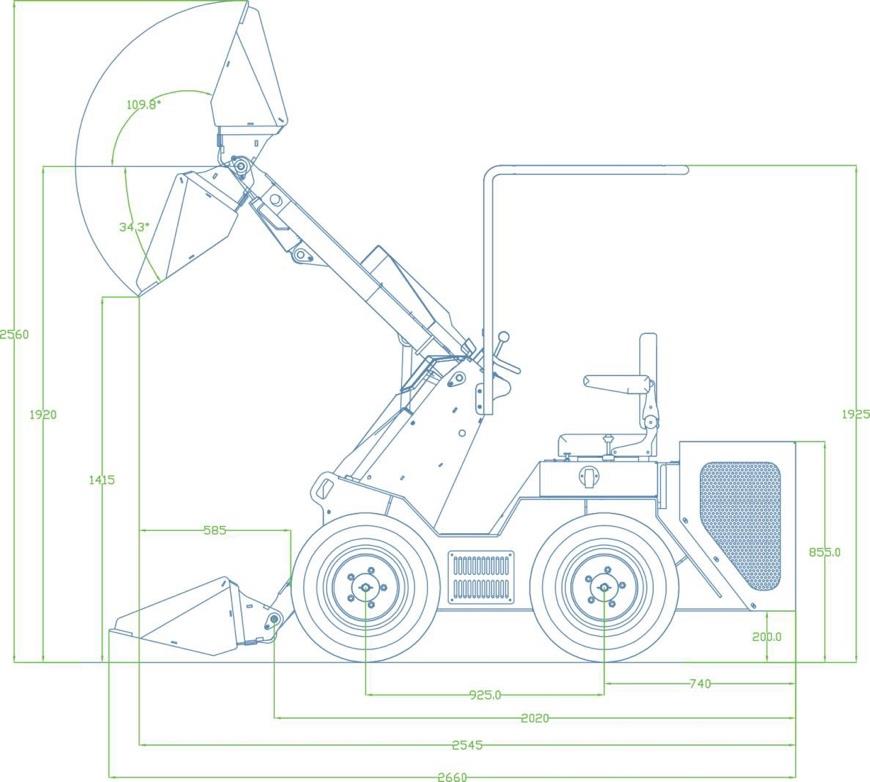

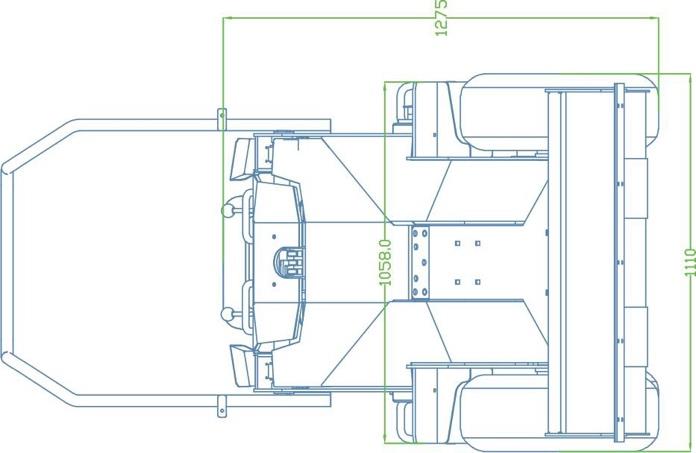

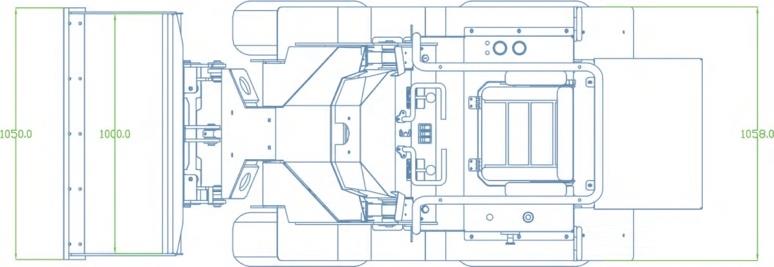

3. Technical Specifications
Horse power25hp
Engine Model292F/XR2100
Rated Load200kg
pressureLength * Width * Height 2660 * 1100 * 1920mm
Travelling speed0-6km/h
Tire23 * 8.5-12
Max. lifting force220kg
Bucket Capacity0.12m³
Max. working height2560mm
Bucket Width1000mm
Unloading height1415mm
Fuel tank capacity18L
Unloading distance585mm
Ground Clearance200mm
4. Optional Equipment & Attachments
- •Forklifts
- •Hydraulic breakers
- •Mesh buckets
- •Grab buckets
- •Log grapples
- •Buckets
- •Direct excavation
- •Sieve shovels
- •Rippers
- •Levelers
- •Mixing drums
- •Bulldozers
- •Snowplows
- •Rotary tillers
5. Application Scenarios
Ideal for urban construction, material handling, landscaping and agricultural projects — a versatile solution for confined and open job sites alike.
6. Summary
The Wheeled skid steer loader (Document No. TN-490) combines robust build quality, flexible configuration and user-friendly operation. Backed by customizable colors, logos and a wide range of attachments, it is engineered to deliver reliable performance across every application.
• Contact us for a quote, OEM/ODM options and fast worldwide delivery.
