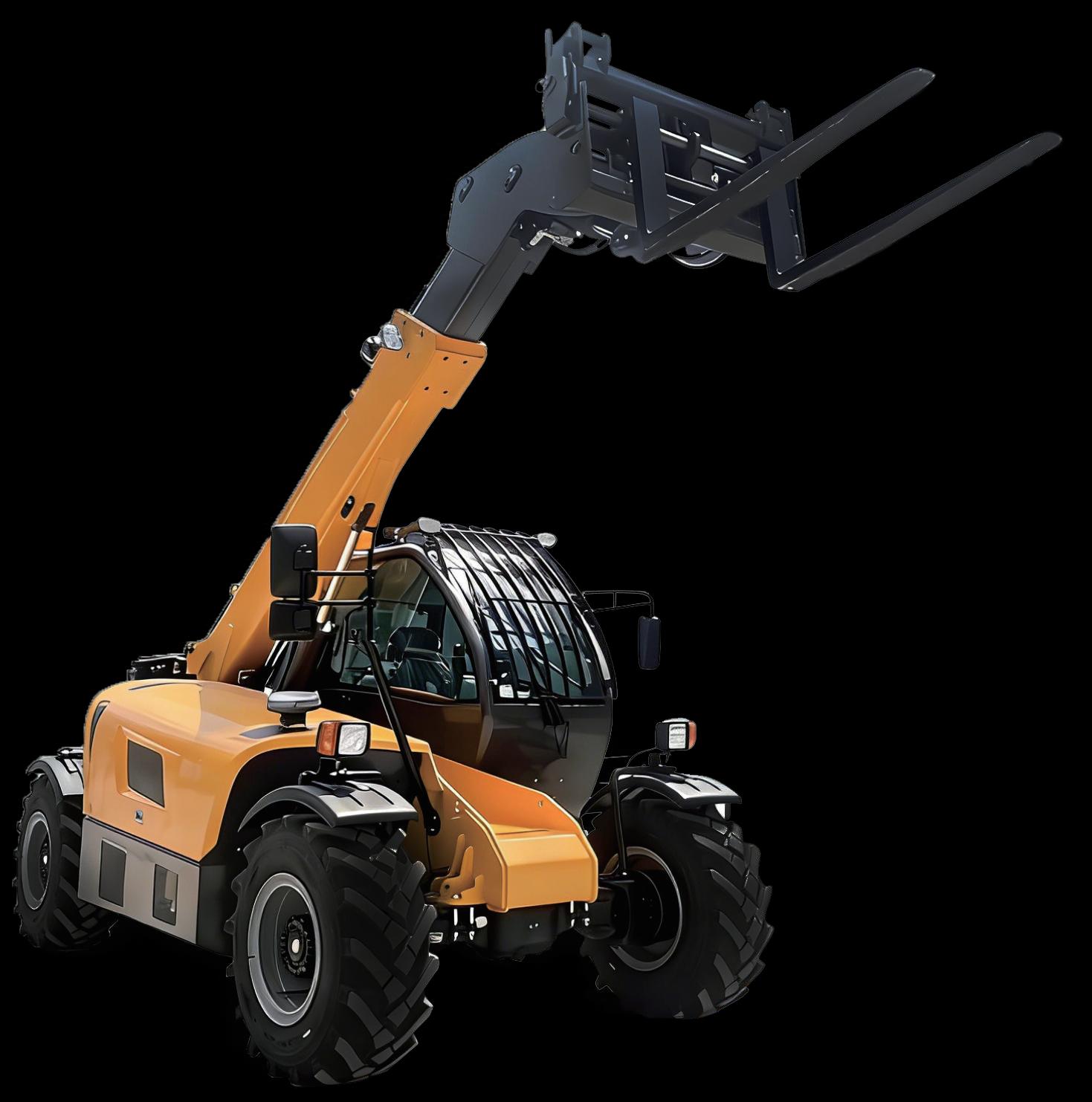

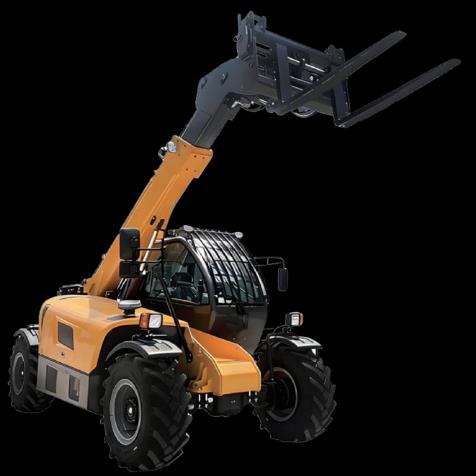

中文Telescopic boom forklift-TN-3507
Product Model & Document No. • Telescopic boom forklift
Max. Lifting Height
7000mm
Max. Power
76kw
Track Width
1780mm
Engine Model
380GBZ
1. Product Overview
24-hour worry-free after-sales service.
The product supports customization.
Forklifts are safe, convenient, environmentally friendly, and energy-saving, making them an ideal choice for operations.
2. Key Features
- •360° rotation
- •Excellent engine
- •Superior engine
- •Long runtime
- •Remote control
- •Customize
- •Remote guidance
3. Technical Specifications
Track Width1780mm
Engine Model380GBZ
Cab Width840mm
Max. Power76kw
Ground Clearance350mm
Max. Lifting Height7000mm
Up/Down Tilt12°/ 90°
Max. Extension Length3200mm
Length (excluding tow fork)4650mm
Max. capacity3500kg
Long (including tow fork)5870mm
Max. driving speed35km/h
Capacity2200mm
Wheelbase3150mm
Bucket Width2550mm
4. Optional Equipment & Attachments
- •360°rotating forks
- •Floating forks
- •Tilting forks
- •Manure grabbers with cleats
- •Shark tooth grabbers
- •Four-needle hay forks
- •Round bale clamps
- •Basin/bucket clamps
- •Universal buckets
- •Multi-functional agricultural grabbers
5. Application Scenarios
- •Material handling
- •Agricultural field
6. Summary
The Telescopic boom forklift (Document No. TN-3507) combines robust build quality, flexible configuration and user-friendly operation. Backed by customizable colors, logos and a wide range of attachments, it is engineered to deliver reliable performance across every application.
• Contact us for a quote, OEM/ODM options and fast worldwide delivery.
